Horizontal and Vertical (Slat direction):

Possibility of placing the lattice with the slats in vertical and horizontal position

   Horizontal Slat          Vertical Slat

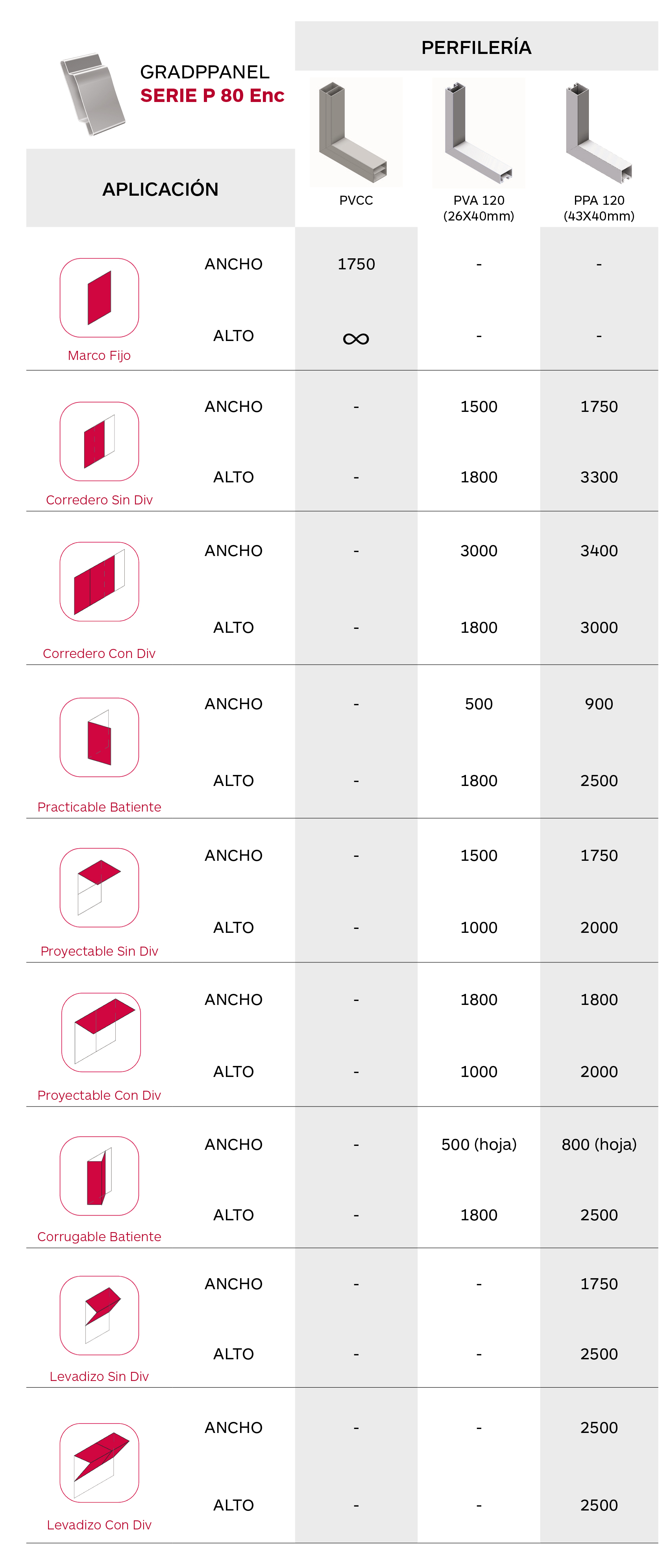

Applications:



Shutter systems in a Fixed Application for panels placed in gaps or for façade coverings. They have visible wall studs or between visible frames with either adjustable or fixed solar protection slats.

---



Shutter systems in a Sliding Application of mobile panels, which slide horizontally along guide rails located on either the inside or outside of the façades. They are made up of panels with visible frames and fittings, use ball bearings to aid displacement, and have adjustable or fixed solar protection slats.

---



Shutter systems in a Practicable Application of adjustable panels which pivot on a vertical axis close to the far edge of the panel. They are made up of panels with visible frames, pivoting fittings for displacement, and adjustable or fixed solar protection slats.

---



Shutter systems in a Projectable Application of moveable panels which are hinged on the upper edge of the frame and have external projection. They are made up of panels with visible frames, projectable fittings for displacement, and adjustable or fixed solar protection slats.

---



Shutter systems in a Slide + Folding Application of various moveable panels, joined together vertically, practicable and move horizontally along guide rails. They are made up of various panels hinged together like an accordion with practicable fittings, ball bearings for horizontal movement, and adjustable or fixed solar protection slats.

---



Shutter systems in a Folding Application of two moveable panels which are linked together horizontally. They are practicable and upwards displaceable along guide rails. They are made up of two panels with visible frames joined together using hinges with compensator fittings, ball bearings for vertical displacement, and have adjustable or fixed solar protection slats.

---



Tipos y definiciones:

Accionamiento a Motor: accionamiento de orientación automática de lamas con operador  visto (motor Lineal) o con operador oculto (motor tubular), dependiendo del tipo de lamas y marco a utilizar, con un punto de mando individual para gestionar la maniobra o con posibilidad de mando general. Nuestros sistemas son adaptables para los diferentes lenguajes  domótico. Las funciones de utilización de los diferentes automatismos se describen en las instrucciones y advertencias del fabricante.

---



Accionamiento a Motor Solar:  accionamiento de orientación automática de lamas con operador oculto (motor tubular) impulsado por energía solar, motor de bajo consumo y batería de larga duración alimentada por células fotovoltaicas que ofrecen una autonomía infinita en toda clase de climas. Controla de forma automática la carga y fuerza aplicada al sistema de lamas, con mando para gestionar la maniobra inalámbrico con tecnología Wirefree. Las funciones de utilización de los automatismos se describen en las instrucciones y advertencias del fabricante.

---



Accionamiento Manual:  accionamiento de orientación manual de lamas para la gestión de la maniobra con diferentes posibilidades de mandos (pomo, palanca, gatillo, manivela, cardan, cilindro lineal y teleflex) dependiendo del tipo de lamas y marco a utilizar.



Motor Drive: activation of automatic slat positioning with either a visible operator (Lineal motor) or a hidden operator (tubular motors), depending on the type of slats and frames used and with an individual control point to manage operation, or with the possibility of a general control. Our systems are adaptable to different domotic languages. Refer to manufacturer’s instructions and warnings for details of the different automatisms’ usage features.

---



Solar Motor Drive:  activation of automatic slat positioning with a hidden operator (tubular motor) fuelled by solar energy, a low-consumption motor, and a long-life battery powered by photovoltaic cells, which offer infinite autonomy in all climates. Automatically control the charge and force applied to the slat system with a remote using Wirefree wireless technology to manage operation. Refer to manufacturer’s instructions and warnings for details of the different automatisms’ usage features.

---



Manual Drive:  activation of manual slat positioning with different possibilities for operation (retractable knob, lever, trigger, crank, universal joint, linear cylinder, and Teleflex) depending on the types of slats and frames used.

---







Las protecciones solares Gradhermetic ayudan a elevar la puntuación en la evaluación de la obtención de estos certificados destinados a mejorar la sostenibilidad.







How to maintain our products:

For a good maintenance of our products, please download the maintenance instructions, which you can find on the right sidebar.
