SuperClassic
Roller shutter with tilting slats
Description
The rolling shutter SuperClassic allows for perfect light regulation, air circulation, and protection of privacy thanks to the placement of the slats. It can be closed completely. Thanks to the slats fitting perfectly, when the blind is down, inside is pitch black. Also, the blind can be open, leaving the window free. It is made of aluminium alloy, decorated and protected with high-quality paints, applied and heat-strengthened in a continual process.
It is available in four different applications: traditional, compact, renovation, and tunnel.

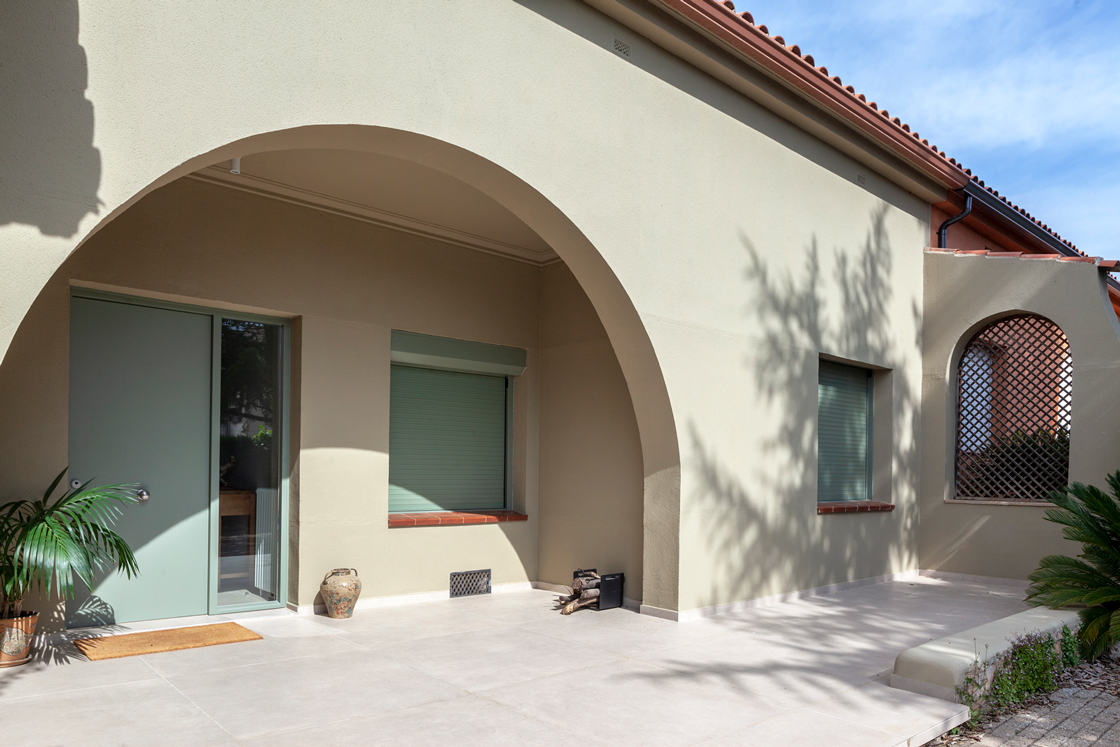

Projects in which this product has been installed
Tecnical descriptionExpand all
COILABLE AND STEERABLE:
Slats go up and down until they reach a perfect closure.
In winter, the sun heat goes inside,keeping intimacy at its maximum orientation position.
STEERABLE
Slats orientation can be chosen up to 120º.
By night cool air is avoided, getting an efficient insulation with the blind in closed position.

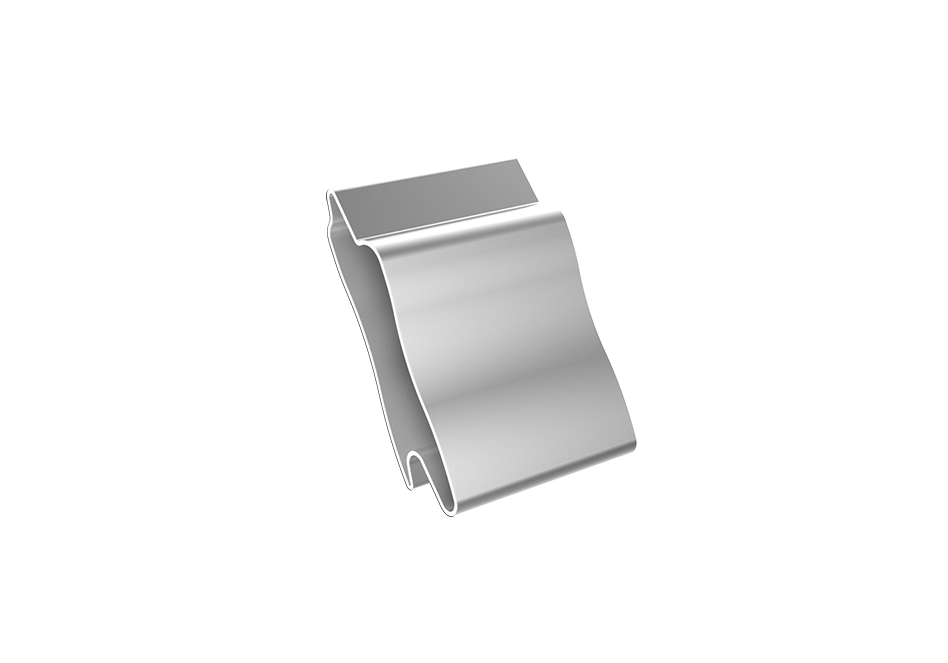

Lama SuperClassic
Traditional Application
In Application for traditional construction system, Gradhermetic supplies SuperClassic roller shutter, guides, necessary fittings, and operations for their installation in carrying out the work.
Operated by cord, crank handle, oscillating rod and by IO or ISG motor.
Maximum width 2750mm
Maximum area 6,30m2
Compact Application (Supercomplet)
In the Compact Application, Gradhermetic supplies the SuperComplet system ready to customize carpentry. It is made with SuperClassic roller shutter in an extruded aluminium box with mullions and rain gutters forming a complete circle with a thermal bridge break.
Operated by IO or ISG motor.
Maximum width 2500mm
Maximum area 6,30m2
Comapct box 205/280
Renovation Application (Superbloc)
In the Renovation Application, Gradermetic supplies hthe SuperBloc system, made up of SuperClassic roller shutter in an aluminium box, the guides and accessories necessary for their installation in the gap on the façade.
Operated by IO or ISG motor.
Maximum width 2500mm
Maximum area 6,30m2
Renovation box 205/250/300
Tunnel Application
In the Tunnel Application, Gradhermetic supplies SuperClassic roller shutter with guides, necessary fittings, and instructions for their installation in pre-fabricated tunnel boxes.
Operated by IO or ISG motor.
Maximum width 2750mm
Maximum area 6,30m2
Traditional Application
Compact Application (Supercomplet)
Renovation Application (Superbloc)
Tunnel Application
Traditional Application
Compact Application (Supercomplet)
Renovation Application (Superbloc)
Tunnel Application
How to maintain our products:
For a good maintenance of our products, please download the maintenance instructions, which you can find on the right sidebar.
